Introduction

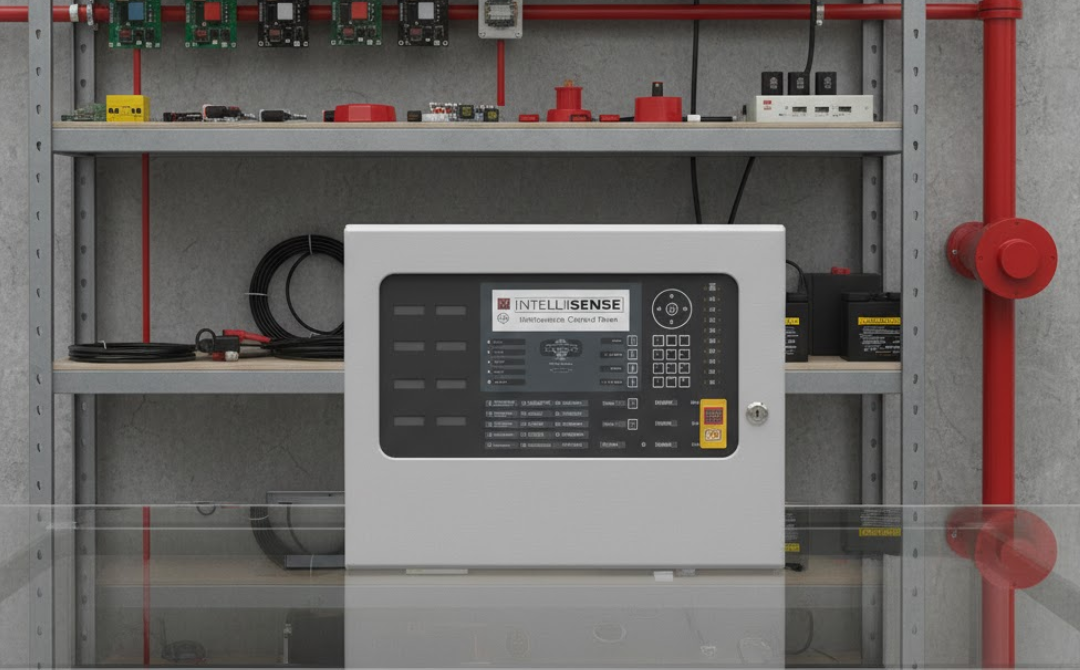

All fire safety begins with one singular point that brings it all together: the fire alarm control panel. Although it may just appear to be another metal box with buttons and a screen, it is the box that operates the whole fire alarm system in your building. If you have ever walked by a red box near an entrance or the security room, that is the brain of the system.
Understanding the function of a fire alarm control panel
The fire alarm control panel serves as the central command station. It continually monitors each of the devices that are connected to it: the smoke detectors, heat sensors, manual pull stations, and the alarms. When any of these devices detect danger, the panel comes to life to react, signaling to sound the alarms, flashes the lights, and potentially notify emergency services.
You can think of the control panel as the “middle man” between the detection devices and all the people who need to respond. Without the fire alarm control panel, the rest of the equipment would have no idea what to do.
I personally remember once visiting a manufacturing unit where the manager showed me how the entire system was linked. The panel there could detect the exact floor and even the corner of the room where the sensor was triggered. It amazed me how fast it all worked — within a second or two, the whole system knew what was going on.
The Primary Functions of a Fire Alarm Control Panel
A fire alarm control panel can look elaborate and involved; however, there are some basic functions to consider. Here are select key functions:
- Monitoring – It monitors each connected device in real time, and if there is an issue or fault, it will notify you.
- Detection – It may signal from detectors when there is smoke, heat, or fiery.
- Alerting – When a detection event occurs, it triggers the alerts and/or flashing lights to notify individuals inside the facility.
- Communication – Depending on the setup, it sends messages to building management systems or can contact emergency services.
- Control – It activates other connected systems such as sprinklers, fans, or door releases, automatically.
As you can see, the fire alarm control panel is not only monitoring but actually managing the next steps.It decides who gets warned, which parts of the building react, and how quickly the system responds.
Types of Fire Alarm Control Panels
There are mainly two big types that most people deal with:
1. Conventional Fire Alarm Panels
These are older but still used in smaller buildings. In this type, the building is divided into zones, and when there’s an alarm, you can only see which zone it’s in, not the exact device. So, it’s like knowing something happened on the second floor but not which room exactly.
2. Addressable Fire Alarm system Panels
This is where things get smarter. Each device has its own address, and the panel can tell exactly which detector was triggered. The modern fire alarm control panel systems are usually addressable because they make it easy to find faults, test the system, and handle emergencies quickly.
Many large facilities prefer fire alarm system panels that are addressable, as it saves both time and confusion.
Why Fire Alarm Panels Are So Important
I cannot stress enough how crucial the main control unit of a fire alarm system is in protecting lives and property. When smoke or heat is detected, even a delay of a few seconds can make a big difference. This unit ensures alarms are triggered instantly, and automatic systems such as sprinklers or exhaust fans are activated without delay.
In a mall or a hospital without this organization, total chaos would ensue in seconds because no one would know where the fire started, or how severe it was. The fire alarm control panel creates a semblance of order under those conditions.
Additionally, it provides great help to maintenance personnel. When something goes wrong, such as with a device, a wire, or something else failing, the panel indicates where the issue is. This is much faster than identifying the faulty device with older systems.
Integration with Other Systems
In today’s buildings, the fire alarm control panel also does not operate by itself. Frequently, it communicates with other operational systems, including HVAC (air control), elevators, and security alarms. Once a fire starts to address air flow, this system can shut down air vents to avoid smoke flow, open exit doors to evacuate, and so on.
Many newer fire alarm panels are even networked across multiple buildings, so one main panel can supervise everything. That is very useful in universities, hospitals, or factory complexes.
How a Fire Alarm Control Panel Improves Safety
Here’s what I really like about today’s panels — they are not just reactive but preventive. They help identify problems before an emergency happens. For example, if a detector is dirty or offline, the system alerts the technician right away. That way, you fix the issue before it becomes a risk.
Also, the latest models store all system history — every alarm, test, and maintenance log — which is super helpful for audits and safety checks.
My Personal Opinion on Fire Alarm Control Panels
Honestly, I feel these panels are kind of unsung heroes. They do not make much noise, but when something goes wrong, everyone relies on them. It is invaluable to have the peace of mind knowing your system will take immediate action.
I once assisted a friend in testing his small-office system, and observing his system in action gave me a real appreciation for how intelligent these devices are. One signal from a detector and the system came alive in perfect sync, as if this was a highly rehearsed fire drill.
Frequently Asked Questions
1. What is a fire alarm system panel?
It’s the central hub of a fire detection system. It receives signals from smoke and heat detectors and then sends commands to alarms, lights, and other devices to alert people of a fire , a fire alarm panel.
2. How many devices can be connected to one panel?
That depends on the model purchased. Smaller systems can support around 20–50 devices, while advanced addressable ones can manage hundreds or even thousands. The system can be scaled as the building’s safety needs grow.
3. How do conventional panels differ from addressable panels?
A conventional system communicates alarms by zones, while an addressable one identifies each individual device. Addressable systems transmit information faster, are easier to maintain, and provide more precise emergency details.
4. How often should the panel be tested?
Testing should be done at least once a month, and a full inspection every year is recommended. Regular maintenance ensures the panel, detectors, and alarms are all functioning correctly.
Conclusion
In simple words, the fire alarm control panel is the heart of every fire safety system. It might not be the part that people see every day, but it is the one working all the time — silently watching, connecting, and protecting. Without it, even the best detectors would be useless.
