FMM-101 Mini Monitor Module – Compact Addressable Single Input Interface for Commercial Fire Alarm Systems

$65.00

Specifications

The FMM-101 Mini Monitor Module is a single-input addressable module built for compact installations, enabling reliable monitoring of dry-contact devices within intelligent fire alarm systems.

  • Model: FMM-101 Mini Monitor Module
  • Type: Addressable Mini Monitor Module
  • Circuits: One initiating device circuit (IDC)
  • Circuit Type: Class B (Style B) supervised
  • Communication: Addressable SLC loop
  • Operating Voltage: 15–32 VDC
  • Current Consumption: Approx. 350 µA (LED flashing)
  • End-of-Line Resistor: 47K ohms
  • Addressing: Rotary switches (01–159 range)
  • Dimensions: 1.3” H × 2.75” W × 0.5” D
  • Mounting: Single-gang electrical box (behind device)
  • Application: Pull stations, waterflow switches, heat detectors
  • Compatibility: Notifier addressable fire alarm systems

17 in stock

Only 17 items left in stock!



  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

FMM-101 Mini Monitor Module – Compact Addressable Single Input Interface for Commercial Fire Alarm Systems
FMM-101 Mini Monitor Module – Compact Addressable Single Input Interface for Commercial Fire Alarm Systems
$65.00

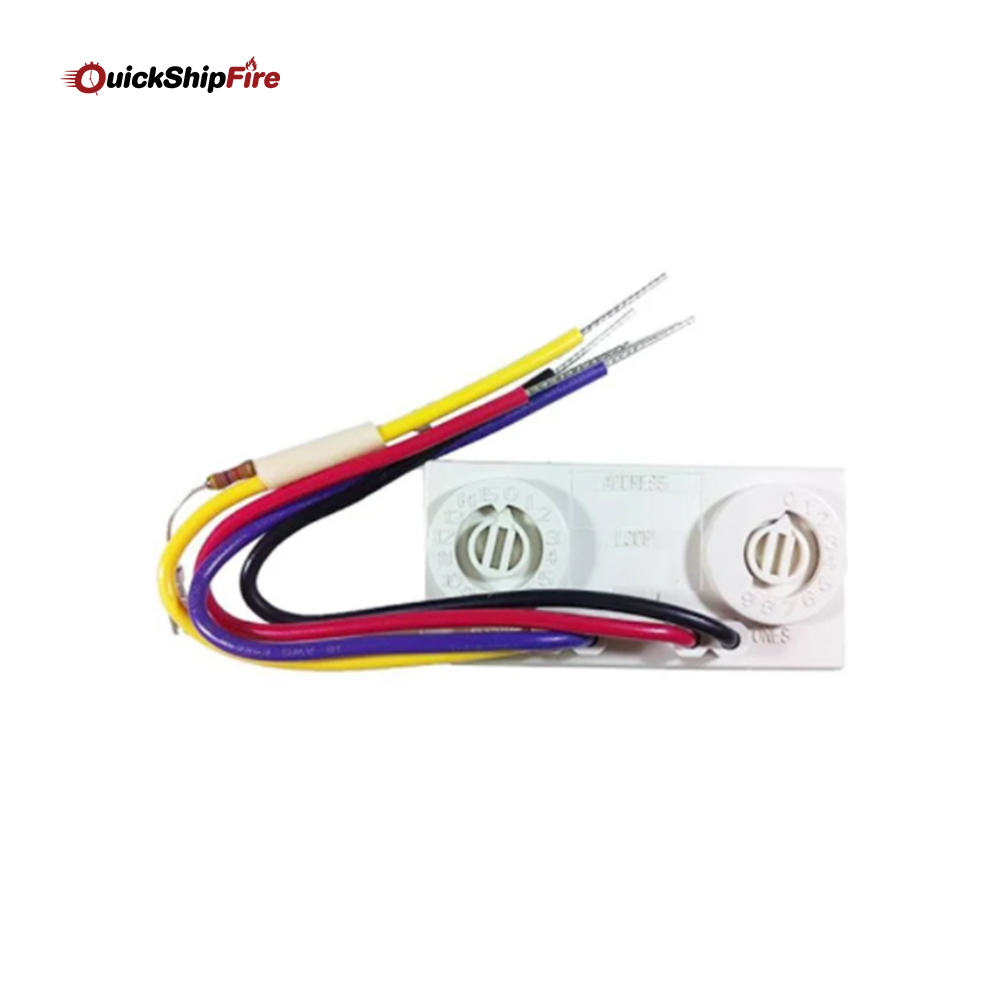

FMM-101 Mini Monitor Module

The FMM-101 Mini Monitor Module is a compact addressable device designed to monitor a single initiating device circuit within fire alarm systems. It is specifically engineered for installations where space is limited, allowing it to be mounted inside a single-gang electrical box directly behind the monitored device. The FMM-101 Mini Monitor Module converts conventional dry-contact devices such as manual pull stations, waterflow switches, and heat detectors into addressable points for precise system monitoring. Its small footprint combined with reliable communication makes it an ideal choice for both retrofit projects and modern fire protection systems.

Features

  • Ultra-compact design allowing installation behind field devices
  • Supports single Class B (Style B) initiating device circuit
  • Converts dry-contact inputs into addressable signals
  • Built-in rotary switches for easy address configuration
  • Includes LED indicator for status and troubleshooting
  • Powered directly from SLC loop (no external power required)
  • Designed for tight spaces and concealed installations

Benefits

The FMM-101 Mini Monitor Module offers a highly efficient solution for installations where space constraints are a major challenge. Its compact size allows it to be hidden behind devices, maintaining a clean and organized installation. By converting conventional devices into addressable points, it improves system visibility and simplifies troubleshooting. The module reduces wiring complexity and installation time, especially in retrofit projects where adding larger modules may not be feasible. Its reliable supervision ensures continuous monitoring of connected devices, enhancing overall fire system performance and safety.

Why Choose QuickShipFire?

  • Ready stock of FMM-101 modules for compact monitoring applications
  • Reliable sourcing ensures genuine performance for space-critical installations
  • Expert support for selecting mini modules for concealed mounting needs
  • Fast delivery for projects requiring quick turnaround in tight spaces
  • Focus on supplying compact solutions without compromising system reliability
Where is the FMM-101 Mini Monitor Module typically installed?
The FMM-101 Mini Monitor Module is usually installed inside a single-gang box behind a device, making it ideal for concealed applications.
How does the FMM-101 Mini Monitor Module help in retrofit projects?
The FMM-101 Mini Monitor Module fits in tight spaces, allowing older conventional devices to be upgraded into addressable systems without major modifications.
What type of input does the FMM-101 Mini Monitor Module accept?
The FMM-101 Mini Monitor Module works with normally open dry-contact devices such as pull stations and waterflow switches.
Does the FMM-101 Mini Monitor Module require an external power supply?
The FMM-101 Mini Monitor Module is powered directly through the SLC loop, eliminating the need for additional power sources.
How is the address set in the FMM-101 Mini Monitor Module?
The FMM-101 Mini Monitor Module uses built-in rotary switches for quick and accurate address configuration.
Why is the FMM-101 Mini Monitor Module preferred in space-limited installations?
The FMM-101 Mini Monitor Module is compact enough to fit behind devices, making it perfect for installations where space is limited.
What kind of monitoring reliability does the FMM-101 Mini Monitor Module provide?
The FMM-101 Mini Monitor Module offers supervised monitoring, ensuring that faults like open or short circuits are detected immediately.
