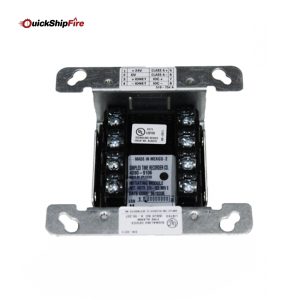

Simplex 4090-9106 IDNet/MAPNET II Monitor ZAM – Addressable Conventional Zone Adapter for Commercial Fire Alarm Systems Simplex 4090-9106 IDNet/MAPNET II Monitor ZAM – Addressable Conventional Zone Adapter for Commercial Fire Alarm Systems $95.00
Simplex 4090-9117 Addressable Power Isolator – Loop Power Protection for Simplex Commercial Fire Alarm Systems Simplex 4090-9117 Addressable Power Isolator – Loop Power Protection for Simplex Commercial Fire Alarm Systems $105.00

Simplex 4090-9116 Addressable IDNet Communications Isolator – Loop Short Circuit Protection for Simplex Fire Alarm Systems

$95.00

Specifications

The 4090-9116 Addressable IDNet Communications Isolator is a line-powered module designed to isolate communication faults in IDNet loops and maintain system operation during wiring issues.

  • Model: 4090-9116 Addressable IDNet Isolator
  • Type: Addressable Communication Isolator Module
  • Communication: IDNet signaling line circuit (SLC)
  • Function: Short circuit isolation and fault protection
  • Ports: Dual-port, bi-directional communication
  • Addressing: DIP switch configurable (1–250 range)
  • Power Source: Loop powered via IDNet
  • Mounting: Standard 4” square electrical box
  • Operating Temperature: 0°C to 49°C
  • Humidity: Up to 93% RH (non-condensing)
  • Compatibility: Simplex 4007ES, 4008, 4010ES, 4100ES, 4100U systems
  • Diagnostics: Reports isolation status and fault location to control panel

10 in stock

Only 10 items left in stock!



  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Simplex 4090-9116 Addressable IDNet Communications Isolator – Loop Short Circuit Protection for Simplex Fire Alarm Systems
Simplex 4090-9116 Addressable IDNet Communications Isolator – Loop Short Circuit Protection for Simplex Fire Alarm Systems
$95.00

4090-9116 Addressable IDNet Communications Isolator

The 4090-9116 Addressable IDNet Communications Isolator is a critical component designed to protect fire alarm systems from communication failures caused by wiring faults. It works by isolating short circuits on the IDNet signaling line, ensuring that only the affected section is disconnected while the rest of the system continues to operate normally. This intelligent isolation capability significantly enhances system reliability, especially in large installations such as commercial buildings, hospitals, and industrial facilities. With automatic fault detection and seamless reintegration once issues are resolved, the 4090-9116 Addressable IDNet Communications Isolator plays a key role in maintaining uninterrupted fire protection.

Features

  • Provides automatic short circuit isolation to protect IDNet communication loops
  • Supports manual isolation activation from the control panel for troubleshooting
  • Designed with dual-port, bi-directional communication capability
  • Each port can function as input or output for flexible wiring configurations
  • Includes LED status indicator for communication and fault diagnostics
  • Compatible with IDNet signaling line circuits across multiple Simplex panels
  • Enables built-in diagnostics to identify wiring faults quickly

Benefits

The 4090-9116 Addressable IDNet Communications Isolator ensures continuous system operation even during wiring faults by isolating only the affected section instead of shutting down the entire loop. This reduces downtime and enhances safety in critical environments. It simplifies maintenance by allowing quick identification of faults, minimizing troubleshooting time. The automatic reset feature ensures the system returns to normal operation once faults are cleared, without manual intervention. Additionally, its flexible installation and compatibility with various control panels make it a reliable solution for both new installations and system upgrades.

Why Choose QuickShipFire?

  • Immediate availability of 4090-9116 Addressable IDNet Isolator for fault protection applications
  • Trusted sourcing ensures reliable isolator performance for complex IDNet networks
  • Support for selecting isolators based on loop protection and system design requirements
  • Fast dispatch service for urgent fire alarm maintenance and upgrades
  • Focus on supplying critical protection modules that prevent full system failure
What is the purpose of the 4090-9116 Addressable IDNet Communications Isolator?
The 4090-9116 Addressable IDNet Communications Isolator is used to isolate short circuits in IDNet loops, preventing system-wide failure and maintaining operation.
How does the 4090-9116 Addressable IDNet Communications Isolator handle faults?
The 4090-9116 Addressable IDNet Communications Isolator automatically disconnects the faulty section and allows the rest of the system to function normally.
Can the 4090-9116 Addressable IDNet Communications Isolator be controlled manually?
Yes, the 4090-9116 Addressable IDNet Communications Isolator can be manually activated from the fire alarm control panel for diagnostics and troubleshooting.
What type of communication does the 4090-9116 Addressable IDNet Communications Isolator support?
The 4090-9116 Addressable IDNet Communications Isolator supports IDNet signaling line circuit communication used in Simplex fire alarm systems.
How does the 4090-9116 Addressable IDNet Communications Isolator improve system reliability?
The 4090-9116 Addressable IDNet Communications Isolator ensures that faults in one section do not affect the entire loop, improving overall system reliability.
Does the 4090-9116 Addressable IDNet Communications Isolator require external power?
The 4090-9116 Addressable IDNet Communications Isolator is loop-powered, meaning it receives power directly from the IDNet communication circuit.
What happens after a fault is cleared in the 4090-9116 Addressable IDNet Communications Isolator?
The 4090-9116 Addressable IDNet Communications Isolator automatically reconnects to the system once the fault is resolved, restoring normal operation.
